Tutorial 11. Operations with Saved Data
pygid saves the results of conversions and line profiles in a dedicated NeXus (HDF5) format. These files can be reloaded as a pygid.Conversion instance for plotting or simulations. Note that since the raw image is no longer available, conversion functions and line profiling will not work on the saved file.
Users can:
Modify selected datasets
Extract or overwrite experimental or sample metadata
Inspect the file structure
Step 1: Load the raw data, PONI file, and mask
from pygid.datasets import get_dataset
# Download example dataset from Zenodo
try:
files = get_dataset("tutorial_11")
poni_path = files["poni"]
mask_path = files["mask"]
# several files for batch processing
data_path = files["data"]
smpl_metadata_path = files["smpl_metadata"]
cif_path = files["cif"]
except:
print("Dataset download skipped on Read the Docs.")
Dataset download skipped on Read the Docs.
Step 2: Convert and save as a NeXus (HDF5) file
import pygid
# create pygid.ExpParams based on the PONI file
params = pygid.ExpParams(
poni_path=poni_path, # path to the PONI file
mask_path=mask_path,
ai=0.01, # angle of incidence (degrees)
fliplr=True,
flipud=True
)
# create pygid.CoordMaps based on pygid.ExpParams
matrix = pygid.CoordMaps(
params, # pygid.ExpParams
hor_positive=True,
vert_positive=True,
)
# add sample metadata
data = {
"name": "240306_DIP",
"structure": {
"stack": "air | DIP 0-25 | SiOx 1 | Si",
"materials": {
"DIP": {
"name": "Diindenoperylene DIP",
"thickness": 25e-9, # optional
"cif": "DIP.cif", # optional
"type": "gradient film"
},
"SiOx": {
"name": "native SiOx",
"thickness": 1
},
"Si": {
"name": "Si wafer"
}
}
},
"preparation": "gradient thin film prepared by thermal evaporation",
"experimental_conditions": "standard conditions, on air"
}
smpl_metadata = pygid.SampleMetadata(data=data)
# add experimental metadata
exp_metadata = pygid.ExpMetadata(
start_time="2024-03-29T15:51:41.343788",
end_time="2024-07-12T08:26:22Z",
source_type="synchrotron",
source_name="ESRF ID10",
instrument_name="ID10-surf",
detector="eiger4m",
monitor=1.1e5, # optional
extend_fields=["monitor"] # fields appended instead of overwritten
)
# load the data from file
analysis = pygid.Conversion(
matrix=matrix, # pygid.CoordMaps
path=data_path, # path to the raw data file
dataset='/entry_0000/ESRF-ID10/eiger4m/data' # dataset path
)
# GID conversion
analysis.det2q_gid(
save_result=True,
path_to_save='result.h5',
h5_group='entry_0000',
overwrite_file=True,
smpl_metadata=smpl_metadata,
exp_metadata=exp_metadata,
)
# Radial profiling
analysis.det2q_gid(
frame_num = 7,
save_result=True,
path_to_save='result.h5',
h5_group='entry_0001',
overwrite_file=False,
smpl_metadata=smpl_metadata,
exp_metadata=exp_metadata,
)
INFO - Saved in D:\PhD\mlgid\pygid\docs\tutorials\result.h5 in group entry_0000
INFO - Saved in D:\PhD\mlgid\pygid\docs\tutorials\result.h5 in group entry_0001
Initialization of the result file and Inspecting the structure:
import pygid
nexus = pygid.NexusFile("result.h5")
nexus.print_file_structure()
File structure: result.h5
{'entry_0000': {'axes': ['q_z', 'q_xy'],
'description': 'cylindrical coordinate conversion for GID '
'geometry',
'img_type': 'img_gid_q',
'shape': (13, 1746, 1859)},
'entry_0001': {'axes': ['q_z', 'q_xy'],
'description': 'cylindrical coordinate conversion for GID '
'geometry',
'img_type': 'img_gid_q',
'shape': (1, 1746, 1859)}}
print_file_structure() displays the two entries in the file, along with their data types and the number of images or line profiles contained.
Modifying datasets:
# Modify the whole dataset
nexus.change_dataset(
data_root='/entry_0000/instrument/angle_of_incidence', # Path to the dataset
frame_num=None, # Index of frame to change; None = whole dataset (int or None)
data=[0.02]*13 # New image data to save;
)
# Modify a single value in a dataset
nexus.change_dataset(
data_root='/entry_0000/instrument/angle_of_incidence', # Path to the dataset
frame_num=2, # Index of frame to change; None = whole dataset (int or None)
data=0.1 # new data
)
# Delete dataset
nexus.delete_dataset('/entry_0000/end_time')
# Create dataset
nexus.create_dataset('/entry_0000/end_time', "2026-02-10T12:39:20.415273")
Loading of pygid.SampleMetadata and pygid.ExpMetadata instances:
from pprint import pprint
smpl_metadata = nexus.get_smpl_metadata(
entry='entry_0000', # data entry
path_to_save=r'sample_metadata.yaml' # save as YAML file
)
pprint(smpl_metadata.data)
INFO - Saved sample metadata to D:\PhD\mlgid\pygid\docs\tutorials\sample_metadata.yaml
{'experimental_conditions': 'standard conditions, on air',
'name': '240306_DIP',
'preparation': 'gradient thin film prepared by thermal evaporation',
'structure': {'materials': {'DIP': {'cif': 'DIP.cif',
'name': 'Diindenoperylene DIP',
'thickness': 2.5e-08,
'type': 'gradient film'},
'Si': {'name': 'Si wafer'},
'SiOx': {'name': 'native SiOx', 'thickness': 1}},
'stack': 'air | DIP 0-25 | SiOx 1 | Si'}}
exp_metadata = nexus.get_exp_metadata('entry_0000')
print(exp_metadata)
ExpMetadata({'start_time': '2024-03-29T15:51:41.343788', 'end_time': '2026-02-10T12:39:20.415273', 'source_name': 'ESRF ID10', 'filename': array([b'C:\\Users\\Ainur Abukaev\\.cache\\pygid\\tutorial_11\\eiger4m_0000_240124_PEN_DIP.h5'],
dtype=object), 'instrument_name': 'ID10-surf', 'source_type': 'synchrotron', 'extend_fields': [], 'monitor': 110000.0})
Overwrite the pygid.SampleMetadata and pygid.ExpMetadata” instances:
smpl_metadata = pygid.SampleMetadata(path_to_load = smpl_metadata_path) # creation of SampleMetadata instance
nexus.change_smpl_metadata('entry_0000', smpl_metadata) # rewritting of entry/sample group
exp_metadata = pygid.ExpMetadata(
start_time="2024-03-29T15:51:41.343788",
end_time="2024-07-12T08:26:22Z",
source_type="synchrotron",
source_name="ESRF ID10",
instrument_name="ID10-surf",
detector="eiger4m",
monitor=1.1e5, # optional
extend_fields=["monitor"] # fields appended instead of overwritten
)
nexus.change_exp_metadata('entry_0000', exp_metadata) # overwritting of entry/instrument group
Save user information
Information about individuals associated with the dataset—such as the data analyst, data owner, or the person who collected the data—can be added using the nexus.set_user_info function.
This function accepts a dictionary containing user metadata. All fields are optional and may include affiliations, contact details, and role information.
The user information can be written either to a specific entry (specified by a str) or applied to all entries in the file (entry=None).
The data will be stored under the specified group name given by field_name.
An example is provided below:
user_information = {
"field_name": "user_1", # name of the subfolder
"name": "Alex Morgan",
"role": "principal_investigator",
"affiliation": "Institute for Materials Research",
"address": "123 Research Drive, Sample City, Country",
"telephone_number": "+00-000-0000000",
"fax_number": "+00-000-0000001",
"email": "alex.morgan@example.org",
"facility_user_id": "IMR-2026-00123",
"ORCID": "0000-0002-1234-5678"
}
nexus.set_user_info(user_information, entry=None)
NOTE: User is responsible for ensuring compliance with data protection regulations
pygid.Conversion can be loaded from NeXus file:
# Full entry
analysis = nexus.load_entry(
entry = 'entry_0000', # entry name to load
frame_num = None, # frame number to load (int, list or None (all))
)
# Single image
analysis = nexus.load_entry(
entry = 'entry_0000', # entry name to load
frame_num = 7, # frame number to load (int, list or None (all))
)
# Several images
analysis = nexus.load_entry(
entry = 'entry_0000', # entry name to load
frame_num = [7,8,9], # frame number to load (int, list or None (all))
)
After the loading pygid.Conversion instance can be plotted and saved separately
Plotting

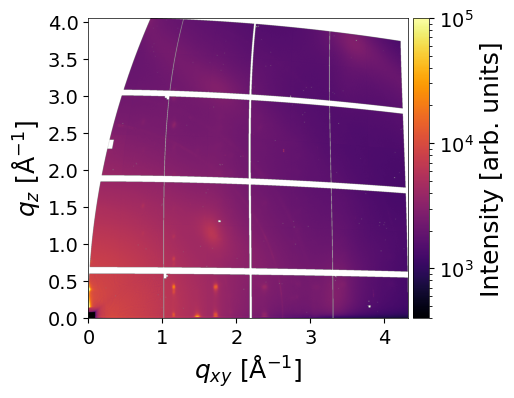

analysis.plot_result(frame_num=0, clims = (4e2,1e5))
Simulation:
analysis.make_simulation(
frame_num=0, # Frame of experimental data
path_to_cif=cif_path, # Path to crystal structure CIF
orientation=[0, 0, 1], # Crystal orientation in lab frame
min_int=1e-3, # Minimal intensity of the peak to show
plot_result=True, # Display simulation overlay
clims=(4e2,1e5), # Intensity limits
)
INFO - Simulating GIWAXS data: path_to_cif='C:\Users\Ainur Abukaev\.cache\pygid\tutorial_11\DIP_thin_film_642482.cif', orientation=[0, 0, 1], min_int=0.001
INFO - frame_num = 0 was plotted
Saving with metadata:
smpl_metadata = nexus.get_smpl_metadata('entry_0000')
exp_metadata = nexus.get_exp_metadata('entry_0000')
pygid.DataSaver(analysis,
path_to_save='single_entry.h5',
smpl_metadata=smpl_metadata,
exp_metadata=exp_metadata)
INFO - Saved in D:\PhD\mlgid\pygid\docs\tutorials\single_entry.h5 in group entry_0000
<pygid.datasaver.DataSaver at 0x1fa0df02f60>
